使用go去抓取PostgreSQL端口的SQL

之前被问到tcpdump去抓取PostgreSQL的SQL时，怎么将SQL解析成可读内容，知道有wireshark可以解析tcpdump生成的cap文件，但不知道wireshake还有针对pg协议专门的扩展, 一直也没遇到过这种需求。最近在学习go语言，于是就想到能否用go直接抓包解析呢。

这篇文章就主要以获取SQL为主。

抓包需要使用gopacket包，详细的教程

原理

客户端向数据库发送SQL时，例如最简单的select 1，数据库端收到的是如下字节数组

[81 0 0 0 14 115 101 108 101 99 116 32 49 59 0]

其中81表示Q(Query),
0 0 0 14 表示一个int32的长度，该值-5(协议类型Q+自身长度4) 表示Query实际长度，因此实际Query byte数组为　115 101 108 101 99 116 32 49 59

使用函数转成字符如下：

mydb=# select chr(115), chr(101), chr(108), chr(101), chr(99), chr(116), chr(32), chr(49), chr(59);
 chr | chr | chr | chr | chr | chr | chr | chr | chr
-----+-----+-----+-----+-----+-----+-----+-----+-----
 s   | e   | l   | e   | c   | t   |     | 1   | ;
(1 row)

可以看到刚好是”select 1;”, 完美的取到整个SQL.

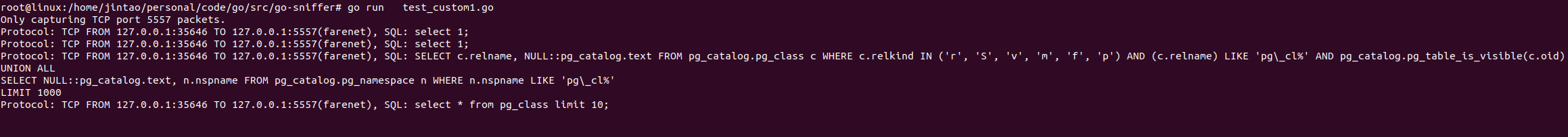

实际运行效果如下所示：

解析’Q’相对来说是比较简单的，要想实现其它类型的协议，是一个不小的工程。

其他前后端协议

前端发送的协议

'p': "Password message"
'Q': "Simple query"
'P': "Parse"
'B': "Bind"
'E': "Execute"
'D': "Describe"
'C': "Close"
'H': "Flush"
'S': "Sync"
'F': "Function call"
'd': "Copy data"
'c': "Copy completion"
'f': "Copy failure"
'X': "Termination"
'0': "NULL"

后端发送的协议

'R': "Authentication request"
'K': "Backend key data"
'S': "Parameter status"
'1': "Parse completion"
'2': "Bind completion"
'3': "Close completion"
'C': "Command completion"
't': "Parameter description"
'T': "Row description"
'D': "Data row"
'I': "Empty query"
'n': "No data"
'E': "Error"
'N': "Notice"
's': "Portal suspended"
'Z': "Ready for query"
'A': "Notification"
'V': "Function call response"
'G': "CopyIn response"
'H': "CopyOut response"
'd': "Copy data"
'c': "Copy completion"
0: NULL

完成代码

package main

import (
    "fmt"
    "github.com/google/gopacket"
    "time"
    "log"
    "github.com/google/gopacket/pcap"
    "github.com/google/gopacket/layers"
    "net"
)

type PgBaseLayer struct {
    flag    byte
    length  []byte
    AnotherByte []byte
}

func (baselayer *PgBaseLayer) DecodeStructFromBytes(data []byte) error {
    baselayer.flag = data[0]
    baselayer.length = data[1:5]
    baselayer.AnotherByte = data[5:]
    return nil
}

var PgBaseLayerType = gopacket.RegisterLayerType(
    2001,
    gopacket.LayerTypeMetadata{
        "PgBaseLayerType",
        gopacket.DecodeFunc(decodePgBaseLayer),
    },
)

func (l PgBaseLayer) LayerType() gopacket.LayerType {
    return PgBaseLayerType
}

func (l PgBaseLayer) LayerContents() []byte {
    return []byte{l.flag}
}

//自定义层实现LayerPayload
func (l PgBaseLayer) LayerPayload() []byte {
    return l.AnotherByte
}

func decodePgBaseLayer(data []byte, p gopacket.PacketBuilder) error {
    p.AddLayer(&PgBaseLayer{data[0], data[1:5], data[5:]})
    return p.NextDecoder(gopacket.LayerTypePayload)
}

type Query struct{
    sqlstring string;
}

type Client struct{
    Seq uint32
    Protocol layers.IPProtocol
    SrcIP  net.IP
    SrcPort layers.TCPPort
    DstIP  net.IP
    DstPort layers.TCPPort
}

func GetClientInfo(packet gopacket.Packet, tcp *layers.TCP) Client {
    var client Client
    client.Seq = tcp.Seq
    client.SrcPort = tcp.SrcPort
    client.DstPort = tcp.DstPort
    ipLayer := packet.Layer(layers.LayerTypeIPv4)
    if ipLayer != nil {
        ip, _ := ipLayer.(*layers.IPv4)
        // IP layer variables:
        // Version (Either 4 or 6)
        // IHL (IP Header Length in 32-bit words)
        // TOS, Length, Id, Flags, FragOffset, TTL, Protocol (TCP?),
        // Checksum, SrcIP, DstIP
        client.Protocol = ip.Protocol
        client.SrcIP = ip.SrcIP
        client.DstIP = ip.DstIP
    }

    return client
}


var (
    device       string = "lo"
    snapshot_len int32  = 1024
    promiscuous  bool   = false
    err          error
    timeout      time.Duration = -1 * time.Second /*实时输出*/
    handle       *pcap.Handle
)


func main() {
    handle, err = pcap.OpenLive(device, snapshot_len, promiscuous, timeout)
    if err != nil {log.Fatal(err) }
    defer handle.Close()

    // Set filter
    var filter string = "tcp and port 5557" /* 只抓取pg端口5557上的tcp*/
    err = handle.SetBPFFilter(filter)
    if err != nil {
        log.Fatal(err)
    }

    fmt.Println("Only capturing TCP port 5557 packets.")

    packetSource := gopacket.NewPacketSource(handle, handle.LinkType())
    for packet := range packetSource.Packets() {
        tcpLayer := packet.Layer(layers.LayerTypeTCP)
        if tcpLayer == nil {continue}

        tcp, _ := tcpLayer.(*layers.TCP)
        if tcp.Payload == nil || len(tcpLayer.LayerPayload()) <= 0 { continue }

        client := GetClientInfo(packet, tcp)

        baselayer := PgBaseLayer{}
        baselayer.DecodeStructFromBytes(tcp.Payload)

        switch baselayer.flag{
            /* new connect */
            case 0:
                fmt.Println("receive new connection FROM %s:%s", client.SrcIP, tcp.SrcPort)
                break;

            /* simple query */
            case 'Q':
                fmt.Printf("Protocol: %s FROM %s:%s TO %s:%s, SQL: %s\n", client.Protocol, client.SrcIP, tcp.SrcPort, client.DstIP, tcp.DstPort, string(baselayer.AnotherByte))
                break;

            /*
            case 'T':
                var nattrs = baselayer.AnotherByte[1]
                fmt.Println(nattrs)
                fmt.Println(baselayer.AnotherByte)
                fmt.Println(string(baselayer.AnotherByte))
            */

            /* found error */
            /*
            case 'E':
                fmt.Println(baselayer.AnotherByte)
                fmt.Println(string(baselayer.AnotherByte))
            */

            default:
                //fmt.Println("does not support protocol: ", baselayer.flag)
                break;
        }

    }
}

参考

https://www.postgresql.org/docs/current/protocol-message-formats.html
https://www.devdungeon.com/content/packet-capture-injection-and-analysis-gopacket#decoding-packet-layers
